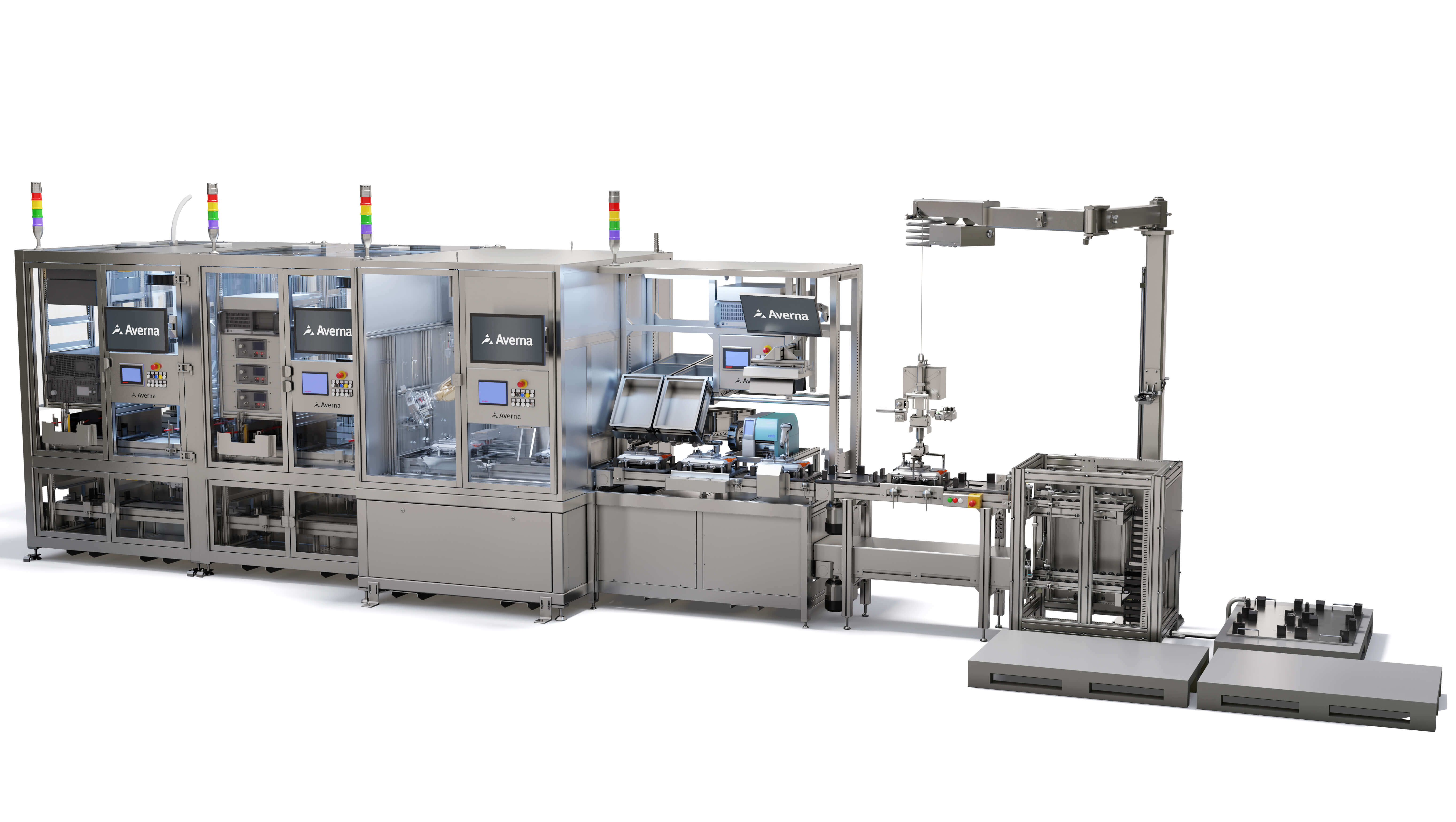

      Test and Validate all EV Power Electronics with One Flexible and Scalable Solution.

      Accommodate multiple product types and variations.

      Automate safety, functional, and leakage tests with part labeling and quality inspection for all common EV ECU modules.

      Grow the system as requirements change. It's flexible design allows the user the opportunity to pick and choose functionalities according to the application and add-on further modules, if required.

      Simplify EV Power Components Testing

      Use one platform to test all power electronics including:

      • Inverters;
      • DC – DC modules;
      • On Board Charges (OBC);
      • Battery Management Solutions BMS/TMS;
      • Rotating parts including small motors;
      • Actuators;
      • Power Distribution Units (PDU);
      • And others.

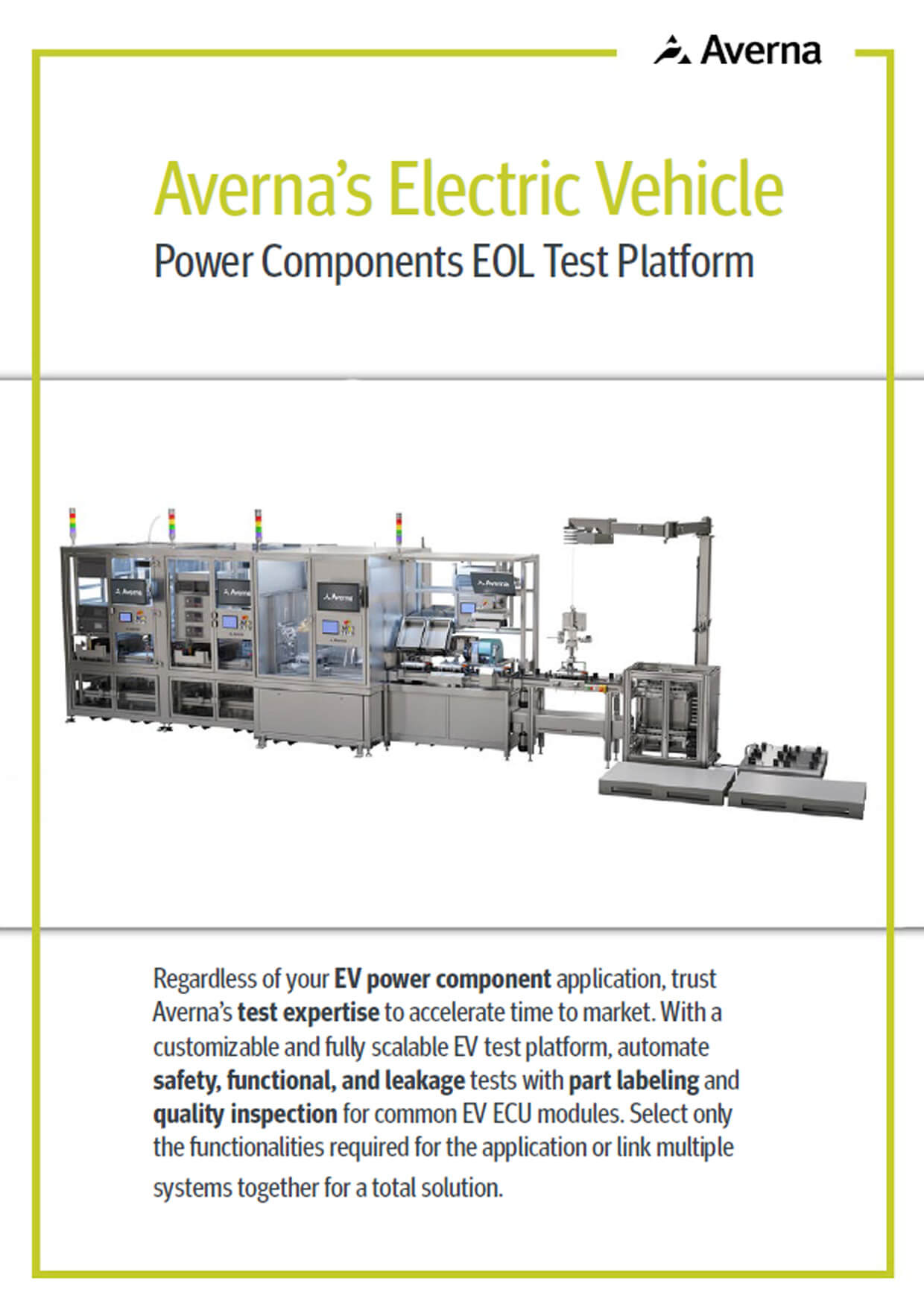

      Get the Specs!

      Benefits of an All-Inclusive Flexible Platform

      By standardizing EV power component testing with this all-in-one test platform, product quality will improve as costs decrease. This reusable system is flexible enough to accommodate multiple product types and variations as well as grow when requirements change. The scalable design makes it easy to ramp up or ramp down production based on market demand without the need to reinvest in new equipment as products evolve.
