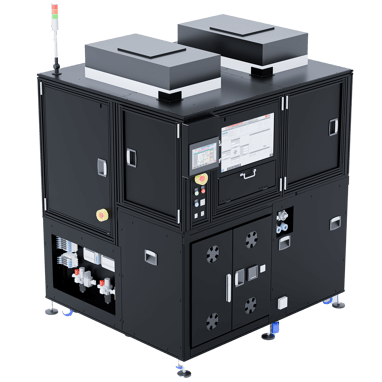

Lens Stack Test Platform

      • KEY FEATURES

      The Lens Module Test Platform delivers the precision and confidence needed to adhere to the exact specifications of modern lenses and cameras.

      Handles lens modules as small as 1 mm x 1 mm x 2 mm.

      Test up to 800 units per hour.

      Precision measurement of optical attributes to 1µm.

      Alignment of mechanical attributes to within 2µm.

      Measures BFL (back focal length) down to 6µm and EFL (effective focal length), distortion and spot size at projected distance.

      Brightness transmittance measurement within 2%.

      Flexible Lens Test Platform

      The Lens Module Test Platform is a flexible solution to deliver the quality that is expected from your brand for all types of lenses and cameras. The system can be configured to measure objective, eyepiece or camera lenses.

      As the platform can efficiently measure lenses as small as 2 mm3, it is perfect for the critically precise applications of life sciences, consumer electronics, automotive and other industries. With 25+ years of quality experience, the Lens Module Test Platform ensures that all products shipped to market work as intended.

      The Right Solution for Better Results

      These machines can be configured with automation to test up to 800 units per hour with a footprint less than 3m2. A highly stable laser light source with an active feedback loop measures precise transmission. Measuring an impressive list of key variables including image spot size measurement, this test configuration delivers confidence in the function and performance of any lens module that passes inspection.
