Power Quality Testing and Analysis: PQA Definition & Deep Dive

What Is Power Quality? (and Why It Matters in Electrical Systems)

Power quality describes how an electrical supply maintains its expected behavior under load. Variations in waveform shape or amplitude influence how equipment operates and may alter the stability of electronic circuits. These variations often appear as:

Waveform irregularities like higher harmonics that disturb control electronics,
Amplitude fluctuations that create dangerous overvoltages or unexpected resets,
Frequency instability which can damage whole grid

The importance of power quality comes from the fact that networks and devices are designed to function within defined limits. When those limits are exceeded, even for short durations, some systems react with unexpected stops. Understanding the nature of these deviations helps identify their origin and determine how they propagate through an industrial facility or across a grid.

But how do you measure power quality? Analysis requires instruments capable of capturing both steady-state conditions and rapid electrical events. Power Quality Analyzers (PQAs) perform this role.

What Is a Power Quality Analyzer?

A Power Quality Analyzer (PQA) is an instrument used to capture electrical quantities over time to assess how a system behaves under real operating conditions.

Unlike a single reading from a basic instrument, a PQA reveals how electrical parameters evolve and exposes issues that only appear through long-term logging or detailed analysis.

How a Power Quality Analyzer Differs From a Power Quality Meter

Although both instruments are used to evaluate electrical conditions, they serve distinct purposes. A power quality meter provides continuous monitoring with a limited set of indicators. It follows essential quantities and highlights basic deviations. But a PQA delivers a more extensive level of analysis. This added depth supports event documentation, helps pinpoint possible sources of interference, and assists engineers during diagnostic work in industrial and utility settings.

Monitoring answers the question “What is happening now?”, while analysis answers “Why did this happen and what should be done about it?”

Power Quality Testing Explained

Power quality testing combines measurement and analysis to understand how an electrical system behaves in real conditions. These practices are central to many power and energy test solutions, where stable operation depends on consistent supply conditions. It uses time-based data from power quality analyzers to capture disturbances, characterize them, and relate them to operating events.

Testing relies on standardized methods so that results remain comparable over time and across sites. International standards include:

IEC 61000-4-30,
IEC 61000-4-7,
IEC 61000-4-15,
EN 50160,
IEEE 1159,
and IEEE 519

They define how quantities are measured, how events are classified, and how limits are evaluated. Power quality analysis then uses this framework to decide whether the system operates within acceptable ranges or requires corrective action.

When and Why Power Quality Testing Is Performed

Power quality testing is usually initiated when operators suspect that electrical disturbances are degrading performance or reliability. A typical trigger is a sequence of unexplained trips, resets, or nuisance alarms around the same areas of a plant. Another common driver is an increase in energy costs that cannot be explained by production volume alone, suggesting hidden losses or poor power factor.

Testing is also carried out during commissioning of new equipment, network reconfiguration, or integration of non-linear loads such as drives or converter-based generation. In these cases, power quality analysis confirms that the modified system still respects internal design rules and external grid requirements. Utilities may request campaigns to investigate complaints, verify contractual quality, or document the impact of specific users on the network.

Methods Used in Power Quality Testing

The method depends on the question being investigated. In practice, two main approaches are used, each suited to a different type of condition and observation window.

Approach	Typical Use	Characteristics
Short field investigations	Identifying the source of a disturbance or examining a specific operating issue	Portable analyzers placed near the suspected point of origin; they record voltages and currents for limited periods and capture events for later inspection.
Long-term monitoring	Observing trends, evaluating supply quality, or documenting network behavior	Permanently installed analyzers or meters at feeders or busbars; they measure according to selected standard classes and forward data to a central system for aggregation and reporting.

Correct selection of the measurement plane remains essential in both cases. The chosen connection point determines what is interpreted as “source side” and what is considered “load side”, which has a direct impact on responsibility assessment between utility and end user.

Key Parameters in Power Quality Analysis

The following lists contain the key parameters and the most important standards in relation to power quality.

Parameters Commonly Evaluated in Power Quality Testing

- Voltage magnitude
  Indicates how closely the supply remains aligned with its nominal value.
- Current behavior
  Shows how the load interacts with the network and whether abnormal draw patterns appear during operation.
- Frequency variation
  Reveals deviations from the nominal system frequency, often linked to generation or load-related imbalances.
- Waveform distortion
  Highlights shape irregularities that interfere with sensitive equipment.
- Harmonic content
  Describes the presence of components at frequencies above the fundamental, typically produced by converter-based loads.
- Total Harmonic Distortion (THD)
  Summarizes the overall effect of harmonic components on voltage or current.
- Imbalance between phases
  Shows unequal loading or network asymmetry that may stress conductors and motors.
- Power factor
  Reflects how effectively the electrical supply is converted into useful work.
- Voltage dips, swells, and short interruptions
  Capture rapid variations that often correlate with switching events, faults, or sudden load changes.
- Event timing and duration
  Provide context for diagnosing how disturbances align with operational cycles or external network activity.

Standards

IEC 61000-4-30
EN 50160
IEEE 519, IEEE 1159
National limits (grid codes)

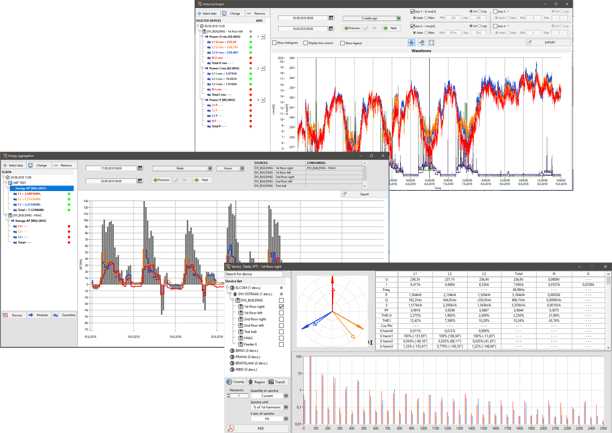

Power Quality Visualization

Key Applications and Advantages of PQAs in Industrial and Utility Environments

Power quality analyzers (PQAs) are used in industrial plants and utility networks to observe electrical behavior and understand how disturbances influence equipment and processes.

PQAs serve the following main purposes:

Monitoring and Diagnostic Work

PQAs can report a range of issues, including voltage dips, surges, harmonics, transients and frequency variations, to name just a few. By analyzing power quality data, engineers can determine the underlying causes of equipment failures, downtime, and energy loss.

Compliance Verification

Numerous industries adhere to strict power quality standards and regulations, like IEC 61000-4-30, IEEE 519, IEEE 1159, and EN 50160. PQAs provide the measurements needed to compare actual conditions with those limits. As a result, they help avoid costly fines and penalties associated with non-compliance.

Special Industrial Applications

PQAs are deployed in a wide range of industrial and utility environments.

In manufacturing, they help examine how power fluctuations influence production equipment and automated systems.
In data centers, they contribute to assessing conditions that affect server stability and overall availability.
In utility networks, PQAs assist with characterizing events reported by consumers and with documenting supply performance at various points in the grid.

Early Detection of Degradation

Long-term power quality data provides insight into evolving patterns that may indicate wear or instability in electrical infrastructure. Rising harmonic levels, increasing imbalance or more frequent short-duration events can signal approaching issues. Engineers use these observations to schedule targeted inspections and plan maintenance activities before they escalate.

Typical Power Quality Monitoring System Architecture

A power quality monitoring system can be viewed as a sequence of layers. Each layer handles a specific part of the measurement chain, from acquisition in the field to interpretation by engineers.

Measurement layer

This layer includes the sensors and the power quality analyzers. Voltage and current probes are installed at the selected measurement points and feed the analyzer with proportional signals. The analyzer samples these signals, applies the required algorithms, and records both steady-state values and event information.

Communication layer

Once data has been acquired, it is transferred to a supervisory environment through a communication network. Depending on the installation, this link may provide continuous transfer for near real-time observation or scheduled transfers for periodic retrieval of logged data.

Data management layer

At the central server or data platform, measurements from multiple sites are aggregated. The system applies statistical processing, checks values against selected standards, and organizes records in a way that supports later analysis. It also maintains status information about each field device, such as connectivity and basic health indicators.

User interaction layer

Engineers access the system through a desktop or web interface. They can inspect time-based plots, examine event records, and compare conditions between different locations. This layer is where power quality testing results are turned into actionable insight for planning, maintenance, and investigation work.

Want to Compare PQA Hardware Types?

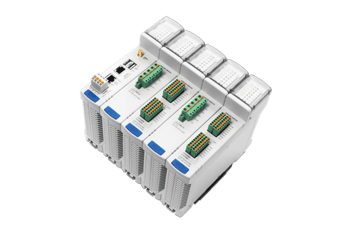

Selecting a PQA starts with understanding where it will be installed and what kind of data the site requires. Portable PQA units help during short diagnostic work, while fixed analyzers suit locations that need continuous observation.

The instrument must match the electrical conditions at the measurement point. Sampling behavior, supported voltage and current ranges, and channel configuration determine how well the analyzer captures the events of interest. Standards support is part of the evaluation, since it dictates how measurements will be interpreted and compared across sites.

To refine the selection, engineers usually look at:
